Non-standard Customized Forging Manufacturers

Non-Standard Customized Forging refers to the manufacturing of unique, project-specific metal components that do not follow standard off-the-shelf specifications. This process is essential for industries like aerospace, oil and gas, and heavy machinery, where parts must withstand extreme stress and have precise, unusual geometries.

Unlike standard manufacturing, customized forging involves tailored tooling, specific material chemistry, and specialized heat treatments.

1. Key Forging Processes for Customization

The choice of process depends on the part's size, complexity, and the required mechanical properties.

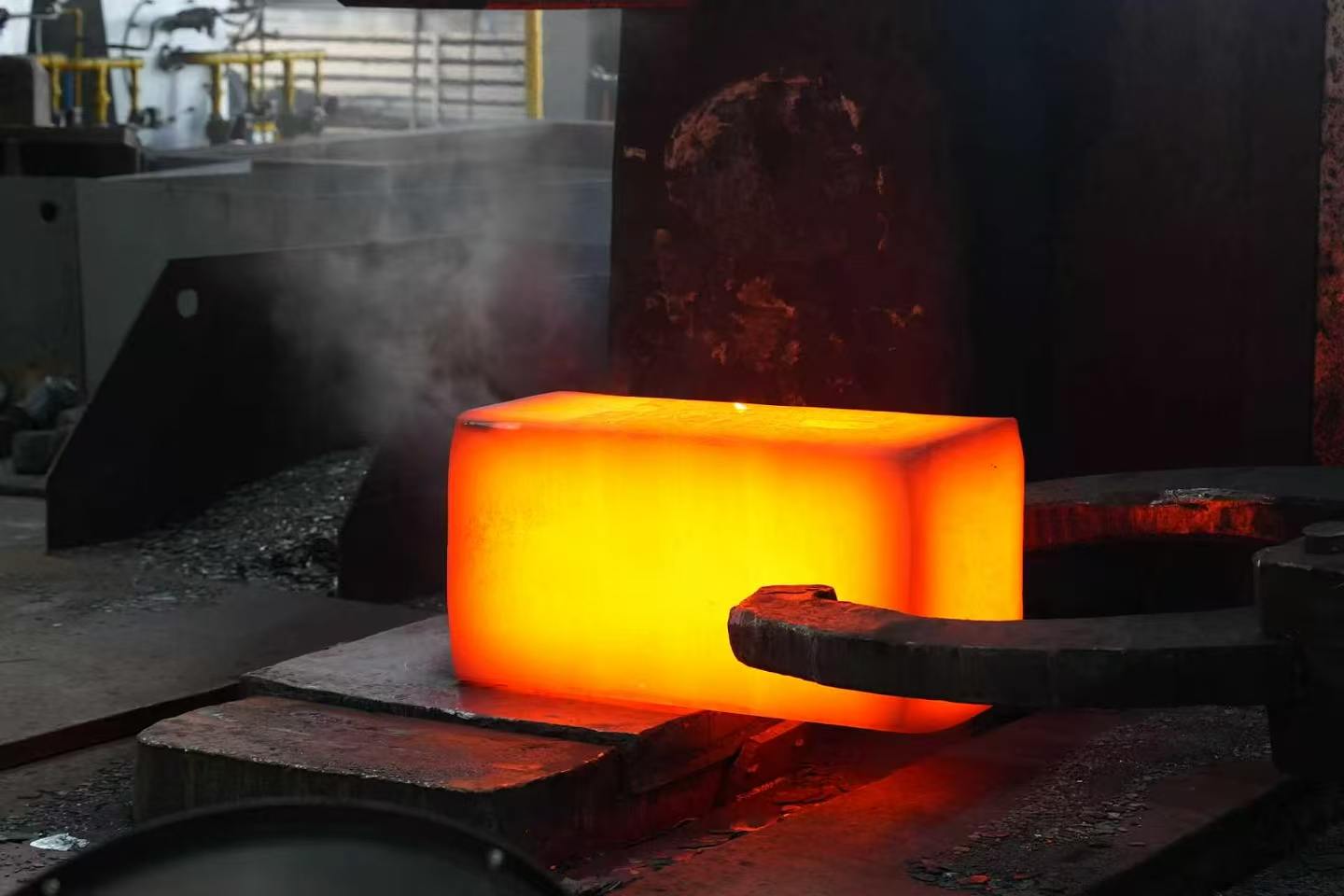

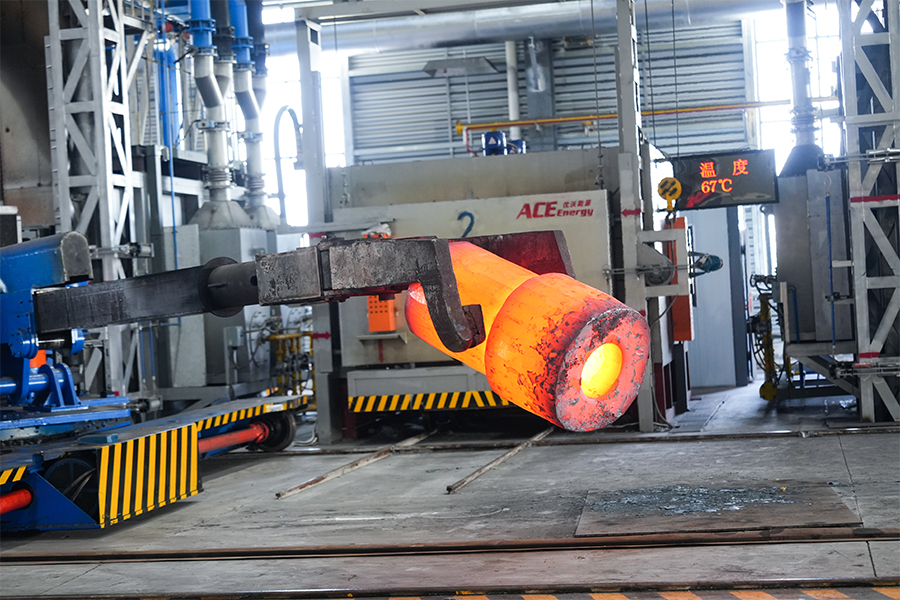

• Open-Die Forging (Free Forging):

  • How it works: The metal is shaped between flat or simple-shaped dies that do not completely enclose the material.

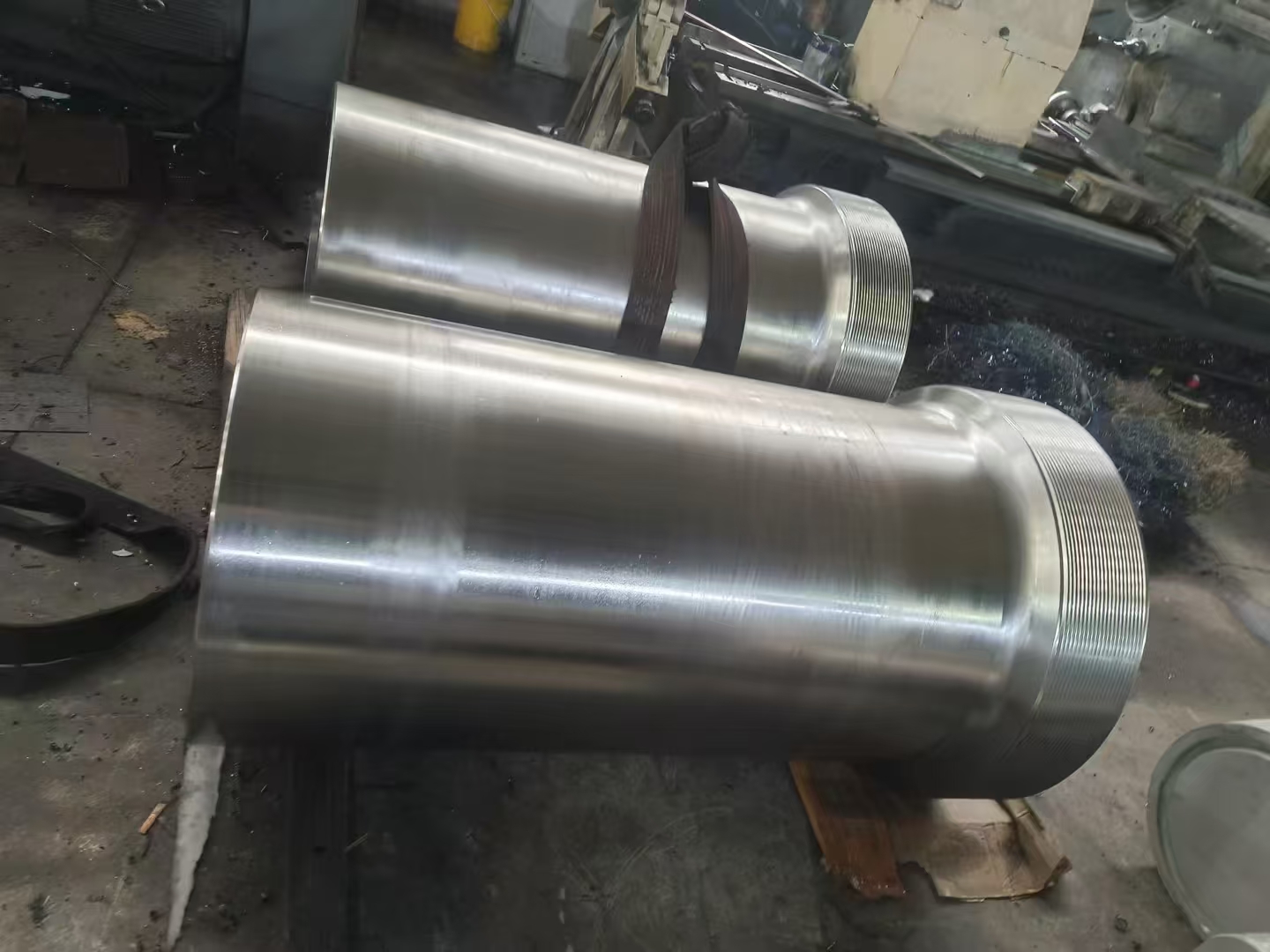

  • Best for: Very large components (up to 150+ tons) like massive shafts, cylinders, or simple custom shapes with low volume requirements.

• Closed-Die Forging (Impression Die):

  • How it works: Symmetrical or non-symmetrical dies enclose the metal, forcing it into a precise, complex shape.

  • Best for: Intricate parts like custom gears, connecting rods, and aerospace housings requiring high dimensional accuracy.

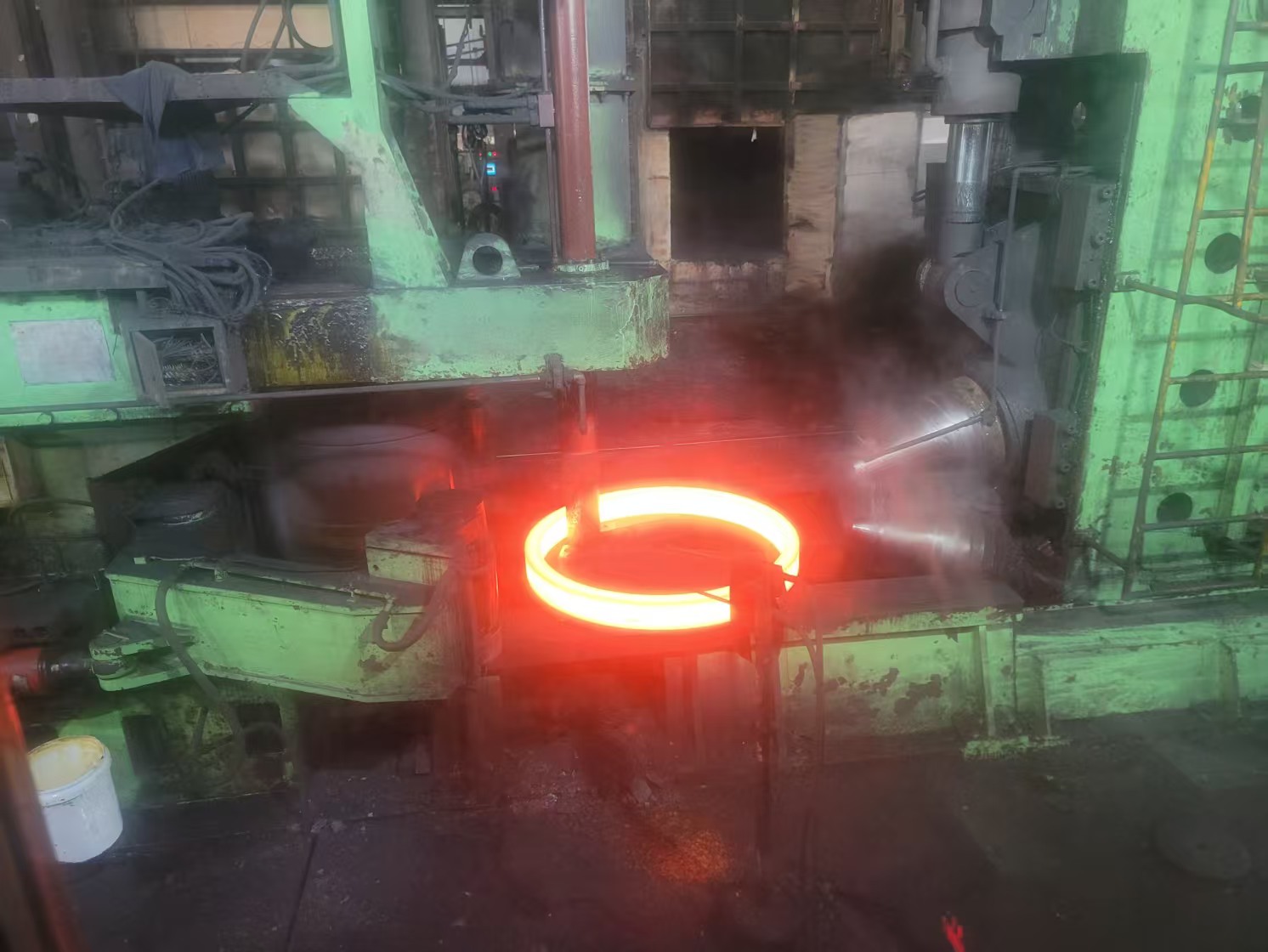

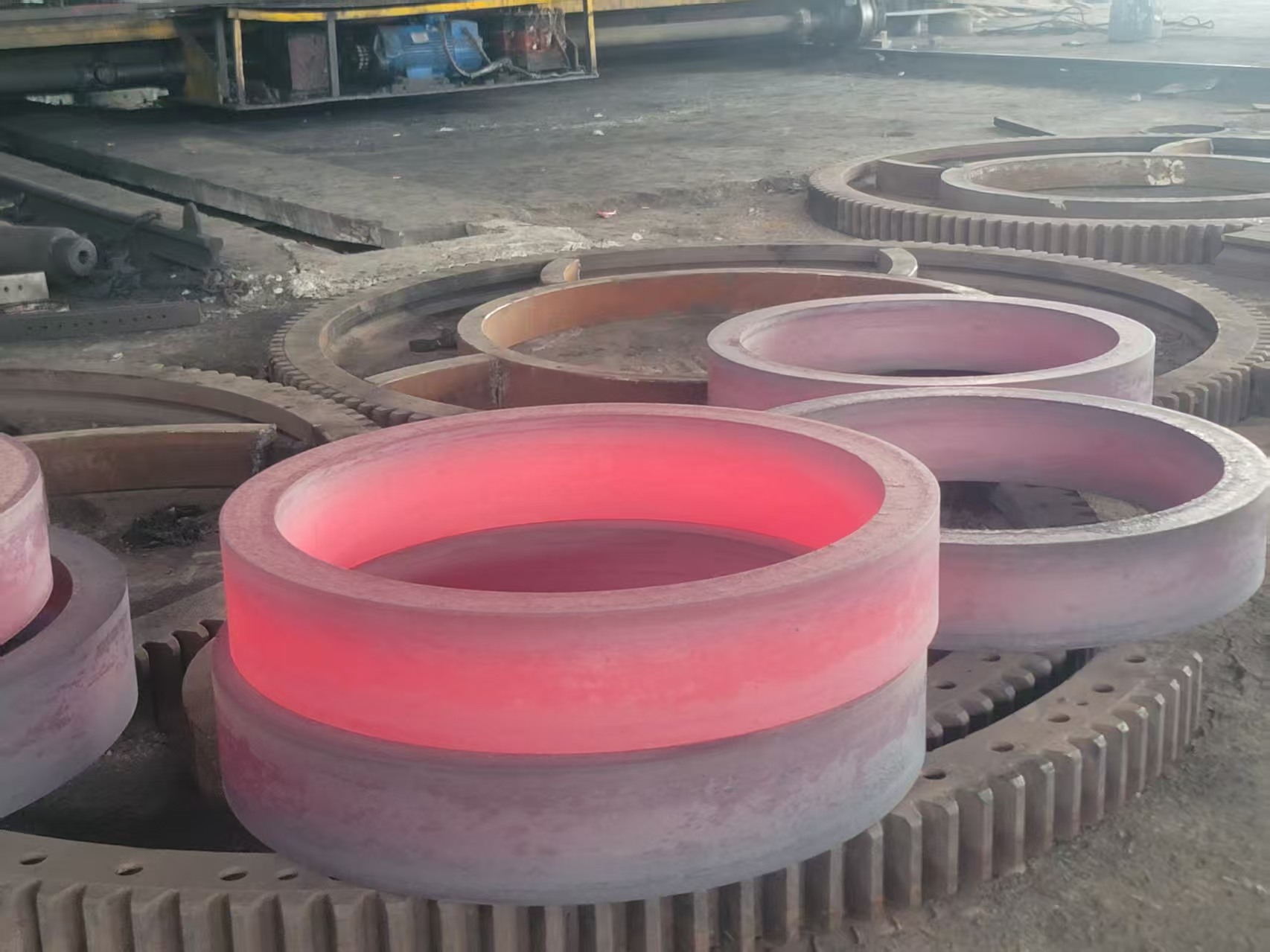

• Seamless Rolled Ring Forging:

  • How it works: A "donut" preform is rolled and squeezed between rollers to increase its diameter while reducing wall thickness.

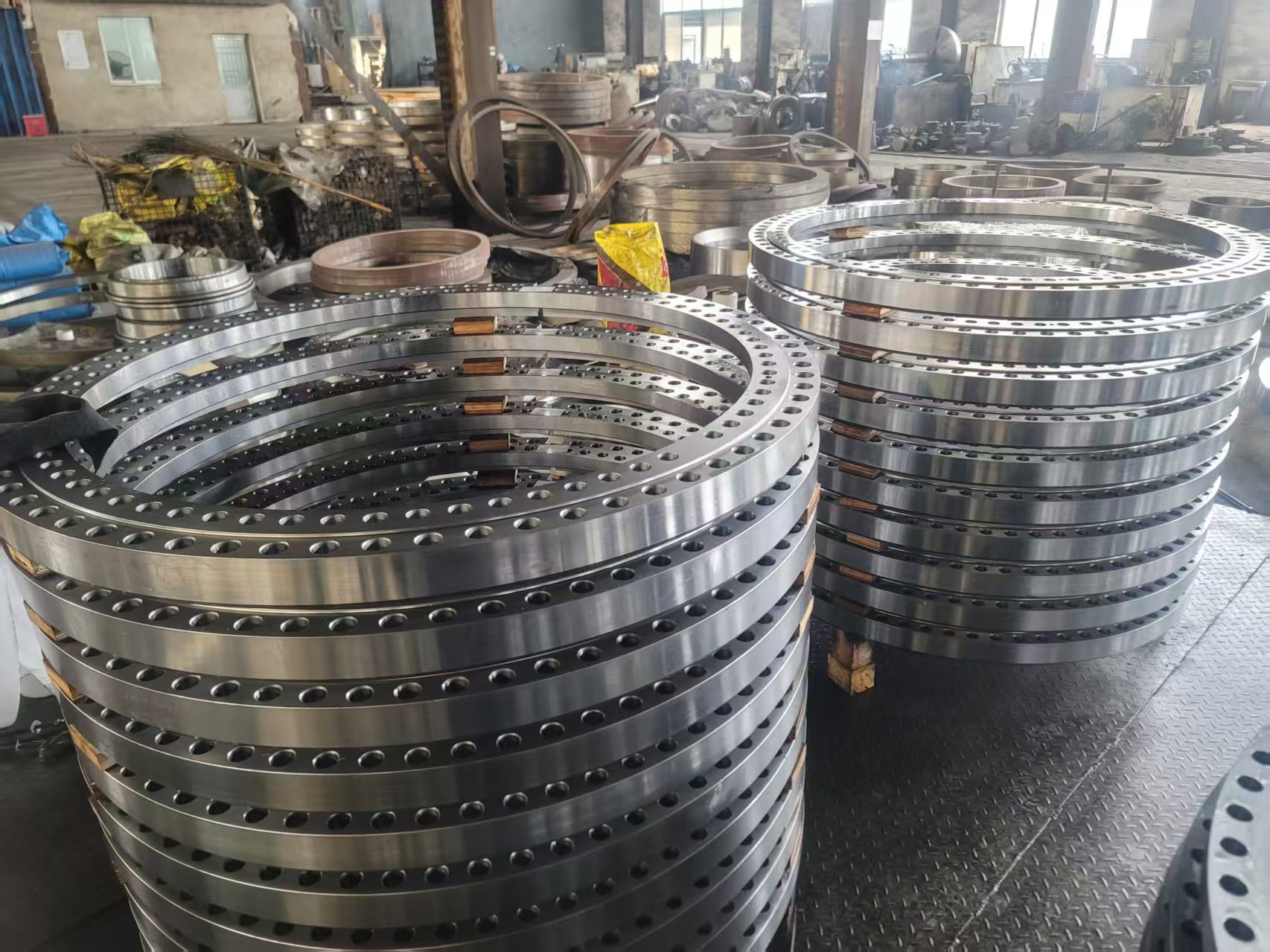

  • Best for: Custom flanges, bearings, and turbine rings.

2. Common Materials in Custom Forging

Customization often begins with the "Chemistry":

• Carbon Steels (e.g., 1020, 1045): General-purpose, cost-effective for structural parts.

• Alloy Steels (e.g., 4140, 8620): Enhanced strength and toughness; common in the oil & gas industry.

• Stainless Steels (300/400 Series, Duplex): For corrosion-resistant custom valves and marine hardware.

• Superalloys (Inconel, Hastelloy): Used for high-temperature environments like jet engines.

• Non-Ferrous Alloys: Aluminum (lightweight), Titanium (high strength-to-weight), and Copper/Brass (conductivity).

3. Advantages: Why Choose Custom Forging?

• Superior Grain Flow: Unlike machining (which cuts through the metal's grain) or casting (which has no grain), forging aligns the grain to the part's shape, significantly increasing fatigue resistance and tensile strength.

• Material Savings: "Near-Net Shape" forging reduces the amount of expensive raw material needed and minimizes secondary machining time.

• Elimination of Welding: Large custom assemblies can often be forged as a single piece, removing the "weak points" associated with weld joints.

4. Challenges in Non-Standard Manufacturing

• High Initial Tooling Cost: Custom dies for closed-die forging can be very expensive to design and CNC-machine.

• Technical Complexity: Achieving tight tolerances on unusual geometries requires advanced FEA (Finite Element Analysis) simulations to predict how the metal will flow.

• Lead Times: Custom projects require a "prove-out" phase for tooling and material testing, which takes longer than buying standard parts.

5. Quality Control Standards

For custom forgings, quality is verified through several "Gold Standard" methods:

• NDT (Non-Destructive Testing):

  • Ultrasonic (UT): Checks for internal voids or "inclusions."

  • Magnetic Particle (MT): Identifies surface or near-surface cracks.

  • Liquid Penetrant (PT): Used for non-magnetic materials like aluminum or stainless steel.

• Destructive Testing: Charpy Impact tests (for toughness) and Elongation tests (for ductility).

• Dimensional Inspection: Using CMM (Coordinate Measuring Machines) to ensure the custom part matches the 3D CAD model.

FAQ: Common Questions on Custom Forging

Q1: What is the minimum order quantity (MOQ) for custom forgings?

• A: For Open-Die forging, the MOQ can be as low as 1 piece because it doesn't require complex dies. For Closed-Die forging, the MOQ is usually higher (e.g., 50–100 pieces) to offset the cost of the custom dies.

Q2: Can you convert a "Casting" design into a "Forging"?

• A: Yes. This is called Casting-to-Forging Conversion. It is done to solve issues like porosity or premature part failure. The forging will be stronger, though the initial tooling cost might be higher.

Q3: How does "Cold Forging" differ for custom parts?

• A: Cold forging is done at or near room temperature. It offers a better surface finish and higher precision but is generally limited to smaller, simpler shapes and softer materials compared to hot forging.

Q4: Why do my custom forgings have surface "Scales"?

• A: Scales are oxide layers formed during hot forging. They are usually removed via Shot Blasting or Pickling before the part is delivered.
