Gearbox Forgings Supplier

In the demanding environments of maritime propulsion and port logistics, the reliability of power transmission is not just a requirement—it is a safety imperative. Gearbox forgings serve as the critical mechanical heart of these systems, responsible for converting high-speed engine output into the massive torque needed to move vessels and heavy containers.

At ACE Group, we leverage our integrated manufacturing layout—from electro-hydraulic hammer forging to precision induction hardening—to produce components that exceed international maritime standards.

1. The Engineering Edge: Why Forged over Cast?

In marine and port machinery, components face "shock loading" (sudden stops and starts). Forging creates a refined grain structure that follows the part's geometry, providing 30% higher fatigue strength than casting.

2. Technical Breakthrough: Precision Concentricity & Longevity

The most common cause of premature gearbox failure is eccentric loading. Even a microscopic misalignment in mounting holes causes uneven pressure on gear teeth, leading to "pitting" and eventual tooth breakage.

The ACE Advantage:

Our precision machining centers ensure that mounting hole concentricity error is maintained within ≤ 0.02mm.

• The Result: Perfect gear meshing alignment.

• The Benefit: Reduced friction heat, significantly lower decibel levels during operation, and a 30-50% extension in equipment service life.

3. Integrated Manufacturing: The ACE Life-Cycle

Our production capability is backed by Jiangsu ACE Energy Technology and our specialized surface treatment facilities, ensuring a seamless transition from raw ingot to finished product.

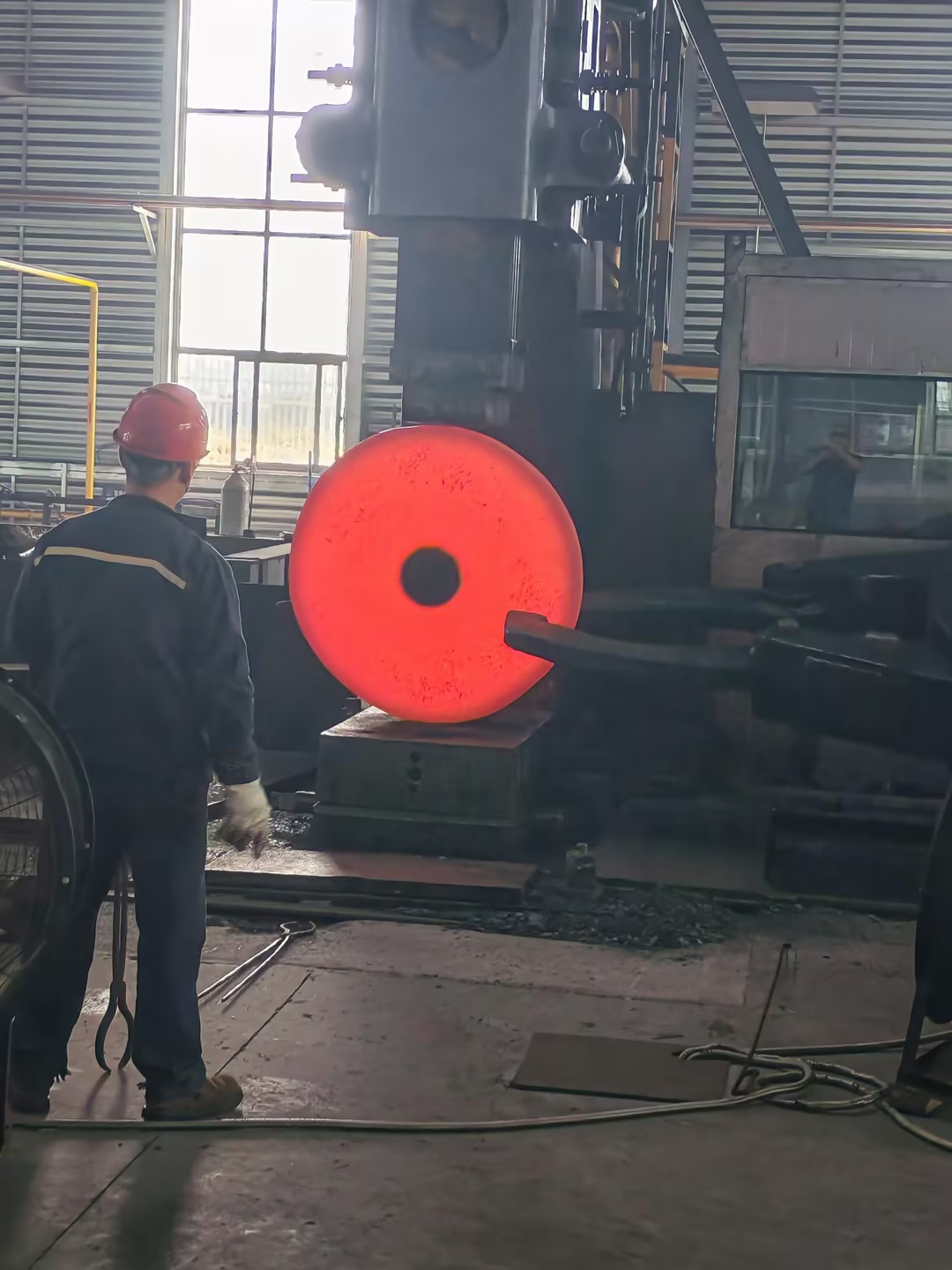

• Material Forging: Using 15-ton electro-hydraulic hammers to ensure deep penetration and density in large-scale gear blanks.

• Precision Heat Treatment: Utilizing resistance furnaces and induction hardening to achieve the "Hard Surface, Tough Core" duality required for impact resistance.

• Advanced Surface Coating: Yancheng ACE Surface Treatment provides heavy-duty powder coating with a one-time thickness of 400μm, offering C5-standard anti-corrosion protection against salt spray in harsh marine environments.

4. Technical Specifications for Marine & Port Applications

5. Frequently Asked Questions (FAQ)

Q1: How does ACE Group ensure the quality of forgings for offshore use?

A: Every product undergoes rigorous Non-Destructive Testing (NDT), including Ultrasonic (UT) and Magnetic Particle (MT) inspection. Furthermore, our subsidiary ACE Machinery is certified by TÜV Rheinland ISO 9001, ensuring compliance with global maritime standards.

Q2: Why is the 400μm coating thickness significant for port machinery?

A: Port equipment operates in highly humid, saline environments. Standard coatings (80-120μm) often peel under mechanical stress. Our 400μm heavy-duty coating provides a superior barrier that resists both chemical corrosion and physical abrasion from handling operations.

Q3: Can ACE Group handle customized small-batch orders for specialized gearboxes?

A: Yes. Our integrated layout—combining the agility of our 3-ton/5-ton hammers with high-precision machining centers—allows us to support both large-scale OEM production and customized, non-standard "one-off" components for specific engineering projects.

Q4: What is the impact of the ≤ 0.02mm concentricity on maintenance costs?

A: Precision concentricity prevents "localized wear" on bearings and gear teeth. By eliminating eccentric loads, users typically see a significant reduction in unplanned downtime and a decrease in the frequency of bearing replacements.
