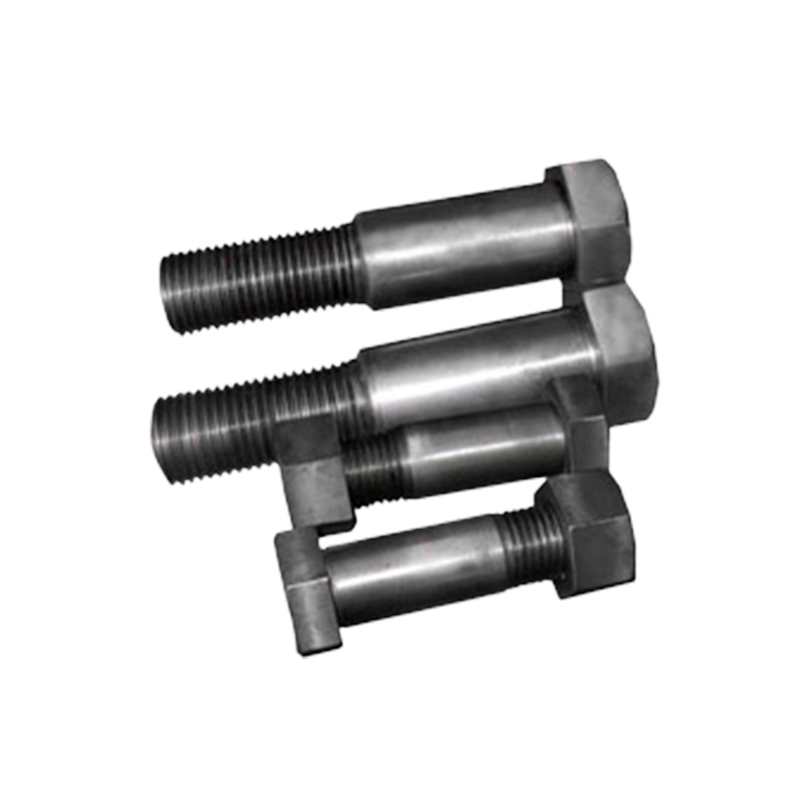

Marine Bolts Supplier

In the global maritime and port logistics sectors, the smallest components often carry the heaviest responsibility. Marine bolts are the primary fasteners that hold together massive hull structures and stabilize heavy-duty cranes under the relentless stress of gale-force winds and salt-water corrosion. A single fastener failure in a port loader or a ship's engine mount can lead to catastrophic mechanical downtime.

At ACE Group, we bridge the gap between heavy forging power and precision fastening. By utilizing our 15-ton electro-hydraulic hammers and specialized heat treatment resistance furnaces, we produce fasteners that don't just "connect"—they secure the structural integrity of your high-value assets.

1. The Science of Fastening: Why Forged Bolts?

In high-torque marine applications, bolts are subjected to intense shear stress and axial tension. While standard machined bolts are cut from bar stock, ACE Group marine bolts are manufactured through hot forging or cold heading processes.

Forging aligns the metal's internal grain flow with the shape of the bolt head, eliminating the structural "weak points" found where the head meets the shank in machined fasteners. This results in significantly higher fatigue resistance, essential for equipment operating in the constant vibration of port environments.

2. Integrated Production: From Raw Alloy to 400μm Protection

The "ACE Advantage" lies in our full life-cycle manufacturing. A bolt is only as good as its chemistry and its shield.

• High-Quality Materials: We select premium alloy steels and stainless steels (such as 316L or Duplex) capable of withstanding high-pressure loads.

• Controlled Heat Treatment: At Jiangsu ACE Energy Technology, we utilize induction hardening and resistance furnaces to achieve precise Grade 8.8, 10.9, or 12.9 hardness specifications.

• Superior Surface Treatment: Marine environments are unforgiving. Yancheng ACE Surface Treatment Technology provides a heavy-duty powder coating solution. While standard galvanization may thin over time, our one-time coating thickness of 400μm provides a weather-resistant barrier that effectively blocks chloride ion penetration.

3. Technical Specifications & Marine Applications

4. Quality Assurance: Beyond the Thread

We don't just manufacture; we validate. Every batch of marine bolts undergoes a rigorous inspection protocol:

1. Tensile Testing: To verify the ultimate breaking point and yield strength.

2. Magnetic Particle Inspection (MT): To ensure the forged head and threads are free from micro-cracks.

3. Dimensional Precision: Ensuring thread tolerances meet international ISO and ANSI standards for a perfect fit.

5. Frequently Asked Questions (FAQ)

Q1: Why is hot forging better than cold machining for large marine fasteners?

A: Hot forging allows for better grain refinement in larger diameters (M24 and above). It ensures the bolt head is an integral part of the metal’s molecular structure, preventing the "head-popping" failures often seen in lower-quality machined bolts under high impact.

Q2: How does the 400μm coating thickness affect thread fit?

A: At Yancheng ACE Surface Treatment, we manage the coating process with precision. We account for the coating thickness during the thread-cutting phase to ensure that even with a heavy-duty 400μm anti-corrosion layer, the bolts maintain a smooth, secure fit with nuts and tapped holes.

Q3: Can ACE Group provide custom-dimension bolts for non-standard port machinery?

A: Absolutely. As a Specialized, Refined, Unique, and Innovative Enterprise, we thrive on customized production. Our integrated layout allows us to handle non-standard lengths, head shapes, and material requirements with shorter lead times.

Q4: Are your marine bolts certified for international shipping standards?

A: Yes. ACE Machinery is certified by TÜV Rheinland ISO 9001, and our products are designed and tested to meet international standards (ISO, DIN, ANSI/ASME), ensuring they are suitable for use on vessels and port facilities worldwide.
