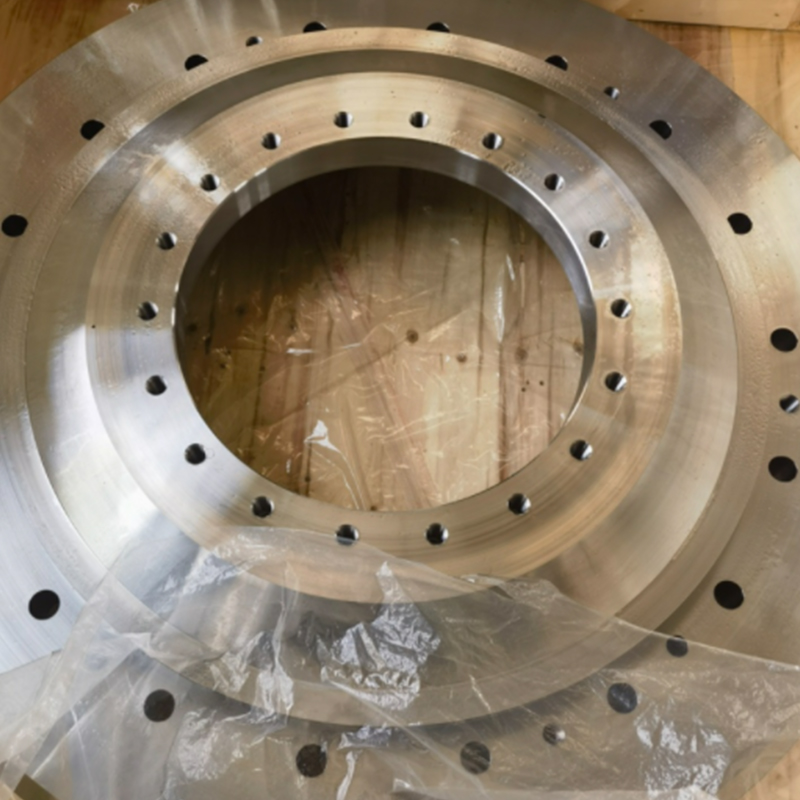

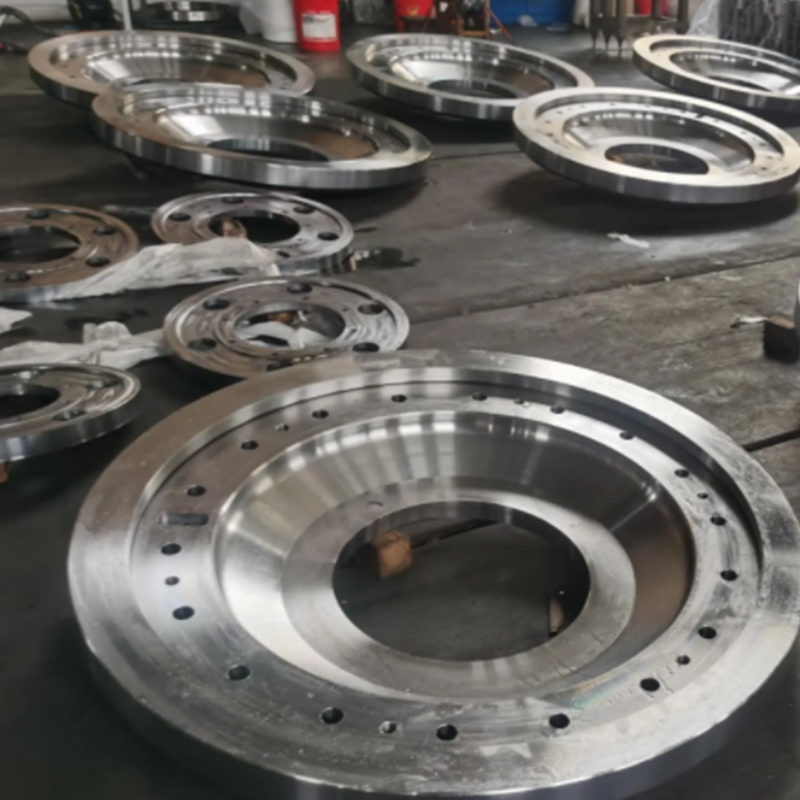

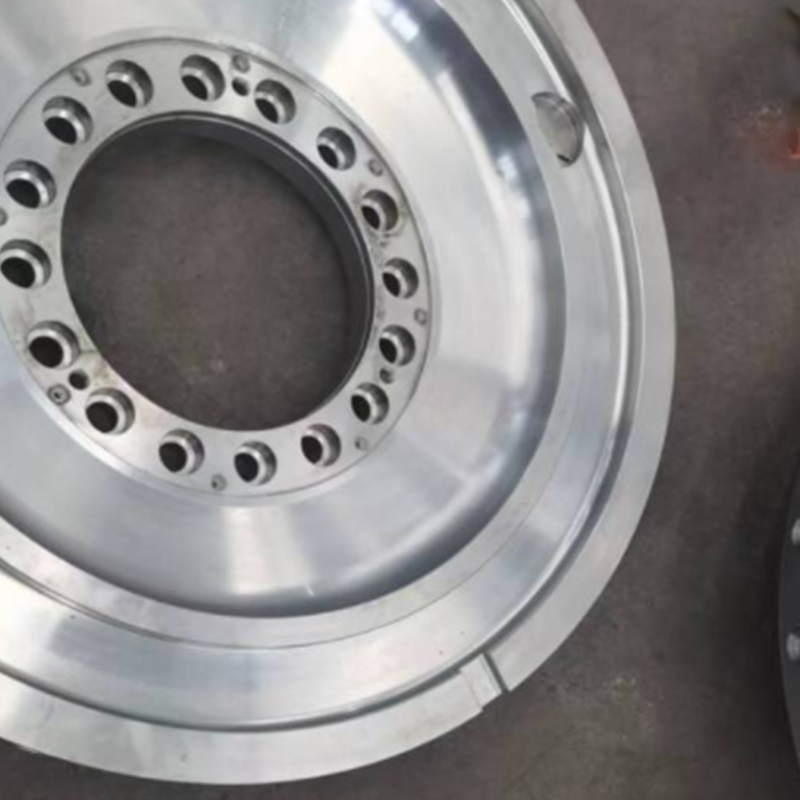

Quill flange
In ring die pellet mills (e.g., Model CPM 7932), the quillflange serves as a key node in the main transmission system, responsible for transmitting motor torque to the ring die and pressure roller.
For instance, a large-scale feed mill utilizes the CPM high-precision tapered sleeve connecting disc to transmit power from a 300kW motor to the ring die with a transmission efficiency of 98.5%. This enables the pellet formation rate to reach over 95% and reduces energy loss by 5% compared to traditional belt-driven systems
